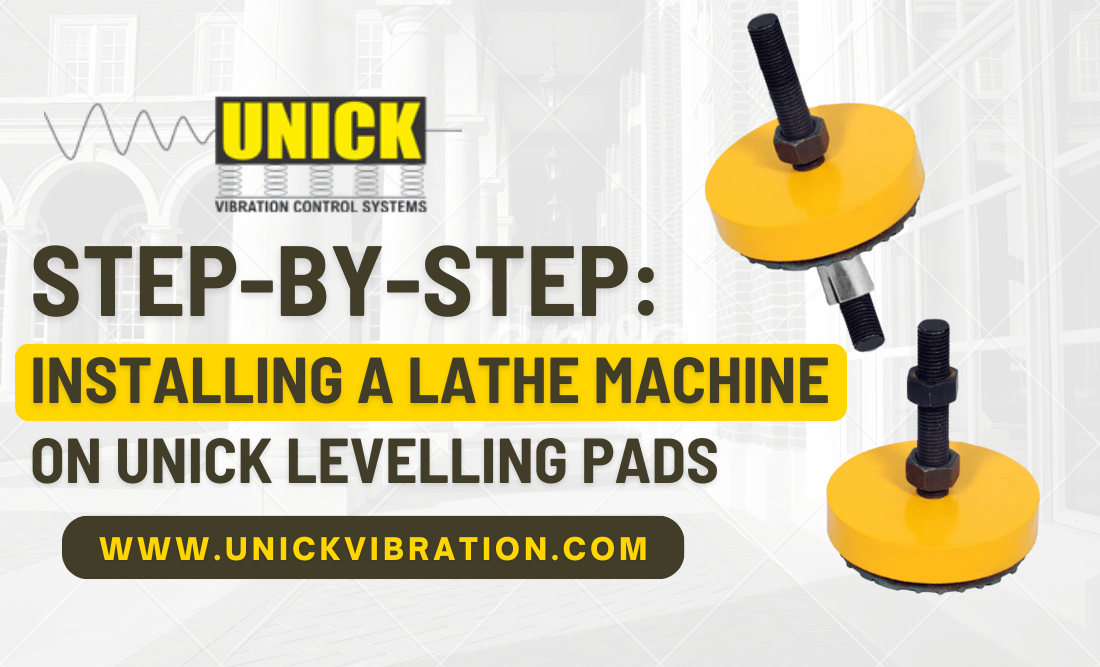

Step-by-Step: Installing a Lathe Machine on Unick Levelling Pads

The installation of a lathe machine might be just another job to do in the workshop, but if you want to keep punching out perfect parts like clockwork, it will need proper planning, perfect alignment, and a good levelling system. Unick Levelling Pads are made to keep the lathe in place, eliminating vibrations, and ensuring that the lathe is accurate for many years. Besides that, they will save the machine owners from the high costs of misalignment that are caused by uneven concrete shop floors.

This tutorial will guide you through the process of floor preparation, lathe alignment, Unick Levelling Pads mounting, and final precision checks in order to ensure that the machine performs exceptionally well.

Preparing Your Workshop Floor for a Safe Lathe Installation

Good installation is always built upon good foundation. Prior to installing the lathe, you need to make sure that your workshop floor is strong enough and thick enough to bear the load and to endure the vibrations from the machine while it is operating. What is more, floor preparation will lead to no structural damage in the long run, will make the working conditions safer for the operator, and will keep the calibration stable.

Lathe machines are a source of massive vibrations, and as such, they depend on a very strong surface. If the foundation is not good enough, there might be tiny movements, which would affect the accuracy of the machining. Hence, preparing your floor is the very first thing to do.

Steps to Prepare the Floor:

Look for cracks, dips, or places that are not even, and which might impact the stability of the machine.
The surface should be cleaned of dust, oil, and other materials.
Measure how much weight the floor can hold, especially in case you are going to set up industrial lathes that are heavy-duty.
Make provisions for good air circulation and easy access for maintenance.
Using a chalk line, indicate the exact area for placement, so that alignment is accurate.

Also, once the floor is ready, you set up a favorable condition for the levelling pad installation to be carried out successfully.

How to Position and Align Your Lathe Machine Correctly

Correct positioning guarantees precision in machining. A misaligned machine would mean that inconsistent cuts would be taking place, and hence faster tool wear, and errors due to vibrations would be even more frequent. Thus, aligning the machine beforehand not only increases accuracy but also prevents disasters from mechanical parts.

The lathe needs to be in its appointed place and aligned with the naked eye before the levelling pads are laid down. Nevertheless, the last touch on the alignment will occur after the heavy duty anti vibration pads are put in place.

Lathe Positioning Steps:

By means of rollers or a forklift, push the lathe into the intended position.
Leave a very comfortable working space around the operator and the machine.
The power supply and workflow should be the basis for checking the machine’s orientation.
Make the placement adjustment such that the centre of gravity remains stable.
Using a spirit level, carry out a rough check for levelling.

Furthermore, always keep a safe distance from other heavy machines so that there will be no interference from vibration.

Placing and Adjusting Unick Levelling Pads for Maximum Stability

Unick Levelling Pads and Insulation Sheets are specifically developed to provide durable support and to suppress vibration, hence they are a must for accuracy to be preserved. In addition, they free up time and resources for grouting, thus making the whole process of installation cleaner and more efficient.

The setup of these pads guarantees that the entire lathe is supported evenly. Among others, the feature of adjusting lets you fix the issue of an uneven floor without the need for restructuring.

Installing and Adjusting the Pads:

First, put the levelling pads beneath each and every mounting point of the lathe.
Then, gradually adjust the height using the built-in screw mechanism.
Next, a precision level is to be used to verify alignment along both axes, X and Y.
Only after achieving perfect levelling should you insert both lock nuts tightly.
To keep the stability uniform, recheck the position after each adjustment.

So, Unick Levelling Pads make it possible for you to have a perfectly balanced machine even if the floor is uneven.

Why Unick Vibration Levelling Pads Improve Machine Accuracy

Unick Vibration's Levelling Pads and Rubber Pads are to a great extent a very good choice for lathe machine owners who consider very much the precision and the longevity of the tool. On top of that, they are skillfully crafted to insulate the vibrations from the machines, hence boosting the quality of the machining.

Flooring is one of the main transmission channels of lathes' vibrations, which may cause unintentional errors. However, Unick Vibration Pads not only absorb these inconveniences but also block any external vibrations from reaching the machine.

Advantages of Employing Unick Vibration Levelling Pads:

Lessen the amount of vibration transmitted for better accuracy in machining
Enhance the life of the tool by decreasing chatter
Comfort the operator during long machining hours
Eliminate micro-movements that result in dimensional instability
Lift overall productivity and quality of finish

All in all, the use of these pads results in a more stable machining environment, which means consistent performance.

Final Checks: Ensuring Precision, Balance, and Long-Term Performance

The last stage is verifying the stability and performance of your machine after it has been placed and levelled. Finally, these checks ensure the installation is perfect before the lathe is fully operational. Even when using Unick Levelling Pads, a meticulous inspection guarantees that the lathe is still stable during the operation with the load applied.

Things to Look for Before Starting the Machine:

Confirm again levelling with a precision machinist level
Check the pads to see that they are secured firmly
Low-speed operation of the machine may help find unusual vibrations
Alignment of the headstock and tailstock to be checked
Lubrication and safety systems need to be verified prior to full operation

If after all this, slight adjustments are needed, Unick Levelling Pads make it possible to perform swift corrections without the need to take apart the machine.

Conclusion

The installation of a lathe machine is not just about putting it on the workshop floor. It requires detailed planning, perfect alignment, and reliable levelling support. Unick Levelling Pads and Anti Vibration Engine Mount, and particularly Unick Vibration Pads, give the ultimate in stability, precision, and long-lasting performance. To sum it up, applying these meticulous procedures guarantees that your machine not only operates smoothly, produces accurate outputs but also retains its reliability over an extended period.

Do you want to set up your lathe machine with maximum accuracy and stability for a long time?

Then, Unick Levelling Pads are the first choice for the best performance and vibration control.

So, contact us today to get professional installation help and the best Unick machine levelling solutions!
