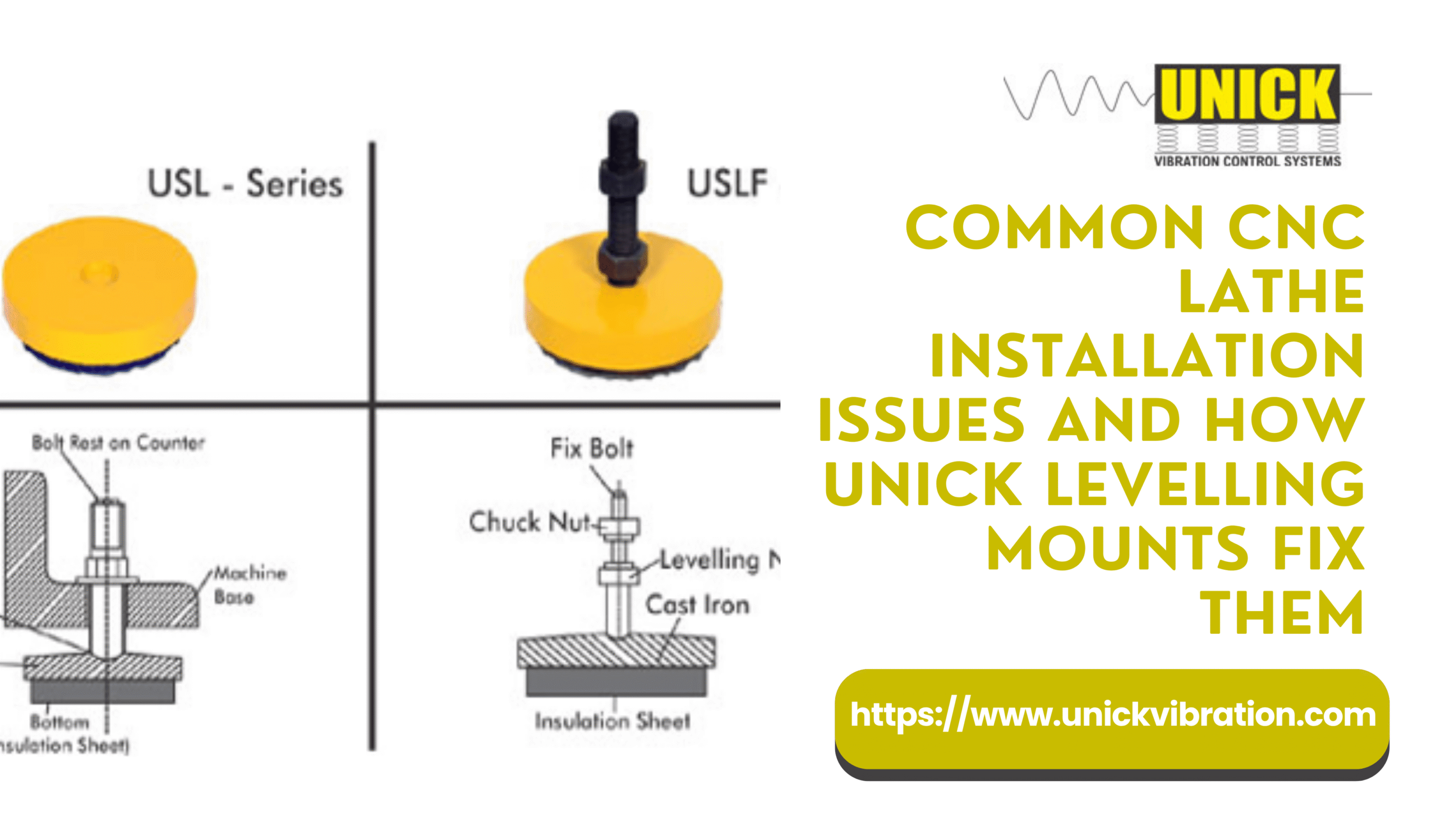

Common CNC Lathe Installation Issues and How Unick Levelling Mounts Fix Them

The installation of a CNC lathe plays a key role in determining its performance. Even the most sophisticated machine can fall short of its potential if problems like misalignment, vibration, or thermal expansion are not dealt with properly. Besides, every millimetre counts in CNC lathes, which are delicate systems. Thus, the operators have to make sure that the installation is stable, accurate, and durable.

Unick Levelling Mounts, which are renowned for their engineering excellence and vibration control capacities, are the ones to provide a dependable, well-established solution to these issues.

Misalignment During CNC Lathe Installation: How Unick Levelling Mounts Ensure Perfect Accuracy

Misalignment is one of the most common installation problems that negatively affects the machining accuracy. In case a CNC lathe is not horizontal or even slightly tilted, the workpiece is not correctly aligned with the cutting tool. Misalignment will also cause spindle runout, tool wear, and inconsistent cuts in the long run.

Reasons for Misalignment:

Uneven floors in the workshop
Errors in manual levelling
An imbalance in the weight across the machine's feet
Use of traditional metal shims leads to wear and tear

How Unick Levelling Mounts Help:

Unick Levelling Mounts are designed for easy, perfect alignment of machines with little effort. Moreover, they get rid of the guesswork and human error, which are typical in conventional levelling methods.

Main Advantages:

This is because of the Precision Levelling Mechanism that guarantees alignment accuracy to the order of microns
Also, the self-compensating design of the mounts adjusts for the uneven load distribution.
The mounts also have a high load-bearing capacity which makes them most suitable for big CNC lathes.
By using the mounts, there will be no need for re-shimming which translates to saving both time and manpower.

Consequently, the machine operators get to benefit from greater accuracy, consistent machining output, and less tool wear.

Excessive Machine Vibration and Noise: The Role of Unick Vibration Control Solutions

Excessive vibration is one of the main problems during CNC lathe installation, as it deteriorates cutting, surface finish, and the machine’s life. Moreover, vibration contributes to operator weariness and intolerable noise in the workplace.

Major Vibration Sources:

High spindle speeds
Poor foundation
External vibrations caused by nearby heavy machinery
Inadequate damping in traditional mounts

How Unick Vibration Control Mounts Solve the Issue

The Unick Vibration series is undoubtedly the most revered vibration technology that is specifically designed for machines and comes right from Unick.

With their mastery, they have developed a line of vibration-control mounts that provide:

80% up to 80% of vibration reduction through advanced elastomeric damping
Smoother operation with shock absorption
Improved operator comfort through noise reduction
Dynamic loads under stable support

Thus, the CNC lathes would run smoother, and at the same time, there would be an AWS surface finish and a longer lifespan of the machines.

Floor Unevenness Challenges and How Unick Levelling Mounts Provide Stable Support

One of the major problems faced in workshops and factories is the existence of uneven floors. The disparity may not be very pronounced to a casual observer, but the CNC machines can feel even a millimetre of the difference. Therefore, ignoring the unevenness of the floor can lead to misalignments and stability issues over a long period.

Reasons Why Uneven Floors Are Harmful for CNC Lathes:

Leads to tilted machine beds
Causes spindle misalignment
Increases vibration levels
Reduces machining accuracy over time

How Unick Levelling Mounts Fix Uneven Floor Issues

The Unick Levelling Mounts are specially built to accommodate irregular or rough floors while still guaranteeing machine stability.

Benefits are as follows:

Large levelling range, perfect for fixing substantial floor dips
Non-slip elastomer base, guaranteeing no movement under load
Friction pads that are high to stop the machine from walking
Quick installation, allowing immediate machine deployment

To sum up, Unick Mounts provide a perfect ground even when the factory floor isn’t.

Thermal Expansion Issues in CNC Lathes and the Fix Offered by Precision Levelling

CNC lathes are constantly heating machines. Thermal expansion of machine components, which subtly alters dimensions and alignment, is the long-term consequence of this. Finally, the thermal distortion limits the tolerance and accuracy of machining to a certain extent.

The following are the effects of thermal expansion:

Warping of the bed
Misalignment of the spindle
Bending of the tool
Inaccurate dimensions of the final parts

Precision Levelling mount gives the following advantages:

The Unick’s Precision Levelling Mounts are designed in a way that they will reduce the structural stresses created by thermal expansion.

Some of their features are:

An even load distribution that will keep the internal stress at a minimum
Heat-resistant elastomers
A stable base that will maintain the alignment of the machine even when there is a change in temperature
Settings for precision levelling that can be repeated, thus allowing for recalibration when necessary

As a consequence, the operators will be able to keep the thermal stability and also ensure the continuous precision machining.

Poor Cutting Quality Due to Instability: How Unick Levelling Mounts Restore Machine Performance

In a situation where a CNC lathe is not stable, the whole process will be affected, from surface finish to tool life. This will lead to a decrease in productivity and an increase in maintenance costs. Machine instability is a frequent result of poor levelling, ineffective vibration control, or machine feet that shift.

What are the Signs of Instability?

Surface finish that is not smooth
Marks from chatter on components
Tools that wear out quicker
Cutting depth that varies

How Unick Levelling Mounts Contribute to Better Cutting Quality?

Unick Levelling Mounts are the ones that make machine rigidity and stability better and in turn make it possible to do high-speed cutting with a stronger foundation.

The advantages are:

The machine is positioned so rigidly that machining is stable
Vibration absorption, hence, no chatter
Leveling is consistent, thus, cutting accuracy is improved
Tool life is increased because of less stress on the tool

That is why manufacturers can get better precision, shinier finishes, and uninterrupted production.

Conclusion

Alignment issues such as CNC lathe installation, vibration, uneven floors, thermal expansion, and instability can all lead to a significant decrease in the performance of machines and the quality of products. With Unick Levelling Mounts, these issues are solved in such a way as to guarantee accuracy, stability, and smooth functioning for a long time. In the end, Unick makes sure that the CNC lathes are always at their best performance from the first day and also on every subsequent day.

Tomorrow, make your CNC lathe stability better with Unick Levelling Mounts!

Unick’s advanced levelling and vibration-control solutions will ensure accuracy, decrease vibration, and lengthen the lifespan of your machine. Get in touch right now for professional help and installation support!
